Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg

  • 1
  • 2
  • 3

Brand Name : FANBAO

Model Number : K KA KF KAF

Certification : CE

Place of Origin : china

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100sets per month

Delivery Time : 8-15work days

Packaging Details : standard export wooden case

Output Torque : 50000N.m

Input Speed : 600~1800rpm

Output Speed : 14-280rpm

Weight (KG) : 80kg

Warranty : 1 year

Color : customer Requirement

Ratio : 7.5~100

Size : K KA KF KAF KAZ KAT KAB

Efficiency : over 95%

Gear material : 20CrMnTi

Housing material : HT250 high-strength cast iron

Input ways : Motor input, AM (IEC) flange input, and shaft input

output way : solid shaft output or hollow shaft output

Contact Now

Parallel Shaft Bevel Helical Gear Reducer Gearbox Motor 3kw 80kg
Product Specifications
Attribute Value
Gearing Arrangement Hard Face Gear Reducer Helical-Bevel Gearmotor K97 Series gearbox reducer with AC motor 380V
Output Torque 50000N.m
Input Speed 600~1800rpm
Output Speed 14-280rpm
Weight 80kg
Warranty 1 year
Color Customer Requirement
Ratio 7.5~100
Size K KA KF KAF KAZ KAT KAB
Efficiency Over 95%
Gear material 20CrMnTi
Housing material HT250 high-strength cast iron
Input ways Motor input, AM (IEC) flange input, and shaft input
Output way Solid shaft output or hollow shaft output
Product Description

The K series gear reducer is a specialized system designed to reduce motor speed while amplifying output torque. This mechanism leverages precise gear meshing with an innovative retarding structure featuring advanced design elements.

Key Industry Applications
  • Food processing equipment
  • Construction machinery
  • Woodworking tools
  • Conveyor systems
  • Agricultural implements
  • Cranes and mineral extraction machinery
Product Features
  • Modular design for adaptable configurations
  • Enhanced efficiency leading to significant power savings
  • Cost-effective operation with minimal maintenance requirements
  • Superior sealing properties for diverse industrial applications
  • High loading support ensuring stable transmission with low noise levels

The K series gear reducer conforms to international manufacturing standards, offering reliability, durability, and remarkable overload capacity supporting power outputs up to 132KW with outstanding efficiency up to 95%.

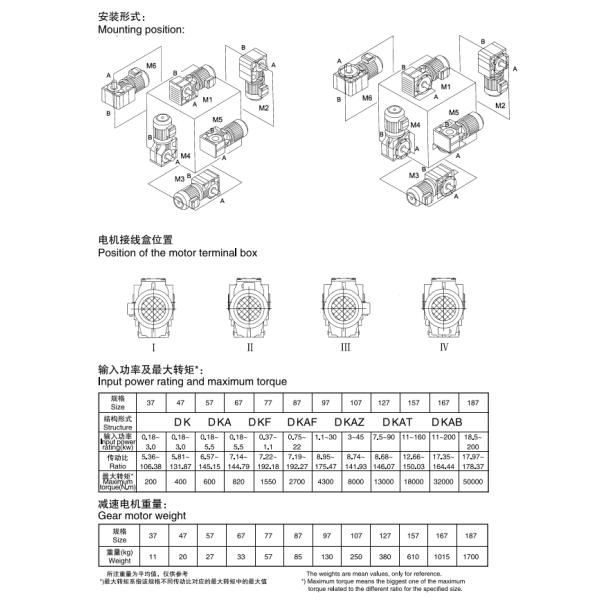

Technical Specifications
Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg

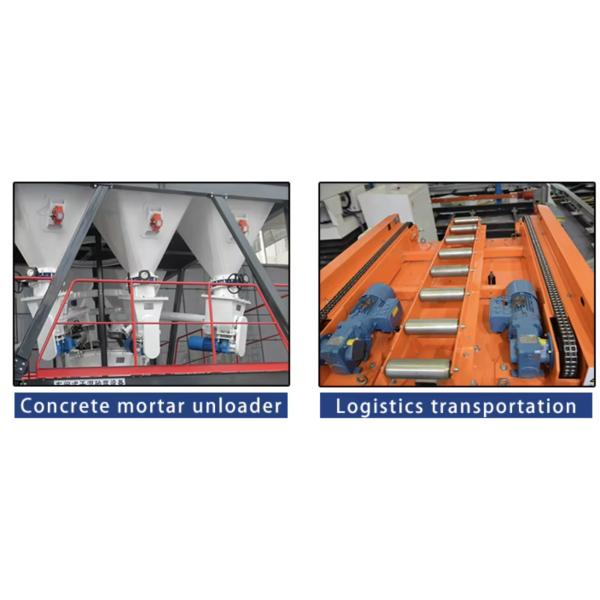

Application Examples
Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg
Manufacturing Process
Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg
Packaging & Shipping
Efficiency Parallel Shaft Bevel Helical Gear Speed Reducer 3kw 80kg
